T5 E-Paper S3 Pro

Board
by LILYGOlilygo-t5-epaper-s3-pro

Also known as: lilygo_t5_epd_s3_pro, T5S3-4.7-e-paper-PRO

Verify my boardCompareEdit on GitHub
Flash this board — 2 firmware options · Unverified
T5 E-Paper S3 Pro board
Board

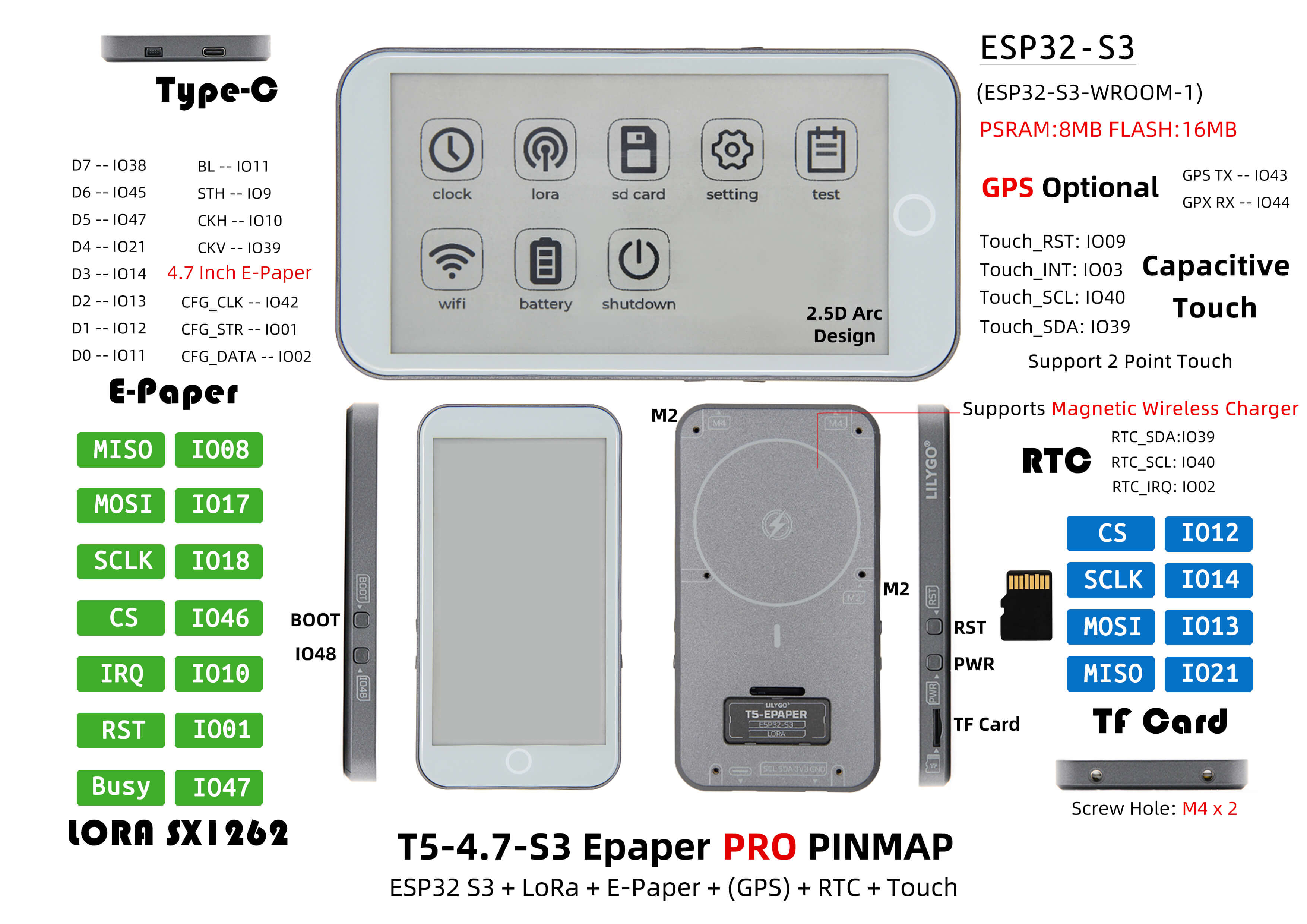

T5 E-Paper S3 Pro pinout
Pinout

Specifications

Radiosinherited from ESP32-S3

Wi-Fi
Wi-Fi 4 · 2.4 GHz
Bluetooth LE
BLE 5
Bluetooth Classic
no
802.15.4
no

USB

Native USB
yes

Board

Battery connector
yes
Charging
yes

Display & extras

Display
4.7in 960x540 e-ink ED047TC1 (16 gray, GT911 capacitive touch)
Built onT5 E-Paper S3 Pro BoardESP32-S3-WROOM-1 ModuleESP32-S3 SoC

A 4.7-inch 960x540 e-paper board on an ESP32-S3-WROOM-1 (16 MB flash, 8 MB PSRAM) with capacitive touch, a 1500 mAh battery and, on the Pro variant, GPS and LoRa.

Firmware for this board

Unverified

  • draftlingUnverifiedmultirelease .bin
    Flash draftlingrelease .bin

    Unverified esp-atlas asserts this board↔firmware link at the shown trust tier — it does not guarantee your specific unit or the current firmware version. Flashing can erase keys/config and can brick the device. At your own risk.

  • LauncherUnverifiedmultirelease .bin
    Flash Launcherrelease .bin

    Unverified esp-atlas asserts this board↔firmware link at the shown trust tier — it does not guarantee your specific unit or the current firmware version. Flashing can erase keys/config and can brick the device. At your own risk.

Notes

  • Vendor repo README: "ESP32-S3-WROOM-1" with "16M / 8M" flash and PSRAM; display "ED047TC1 (4.7 inches, 960x540 , 16 gray)"; touch "GT911 (0x5D)"; battery "3.7V-1500mAh" with "BQ25896 (0x6B), BQ27220 (0x55)" charger and fuel gauge; TPS65185 e-ink PMIC; PCF8563 RTC; PCA9535PW GPIO expander
  • Three variants share the board: "T5 E-Paper S3 Pro" (GPS + LoRa SX1262 + TPS65185), "Pro Lite" (GPS and LoRa omitted, same schematic), "H752" (LoRa included, GPS and TPS65185 absent)
  • USB connector type and any USB-UART bridge are not stated in the README (omitted)
  • aka "lilygo_t5_epd_s3_pro" is the device token draftling uses for its release binaries
