ESP32-S3 Display FNK0104S

Board
by Freenovefreenove-fnk0104s

Also known as: freenove_fnk0104s

View 1 firmware recipe

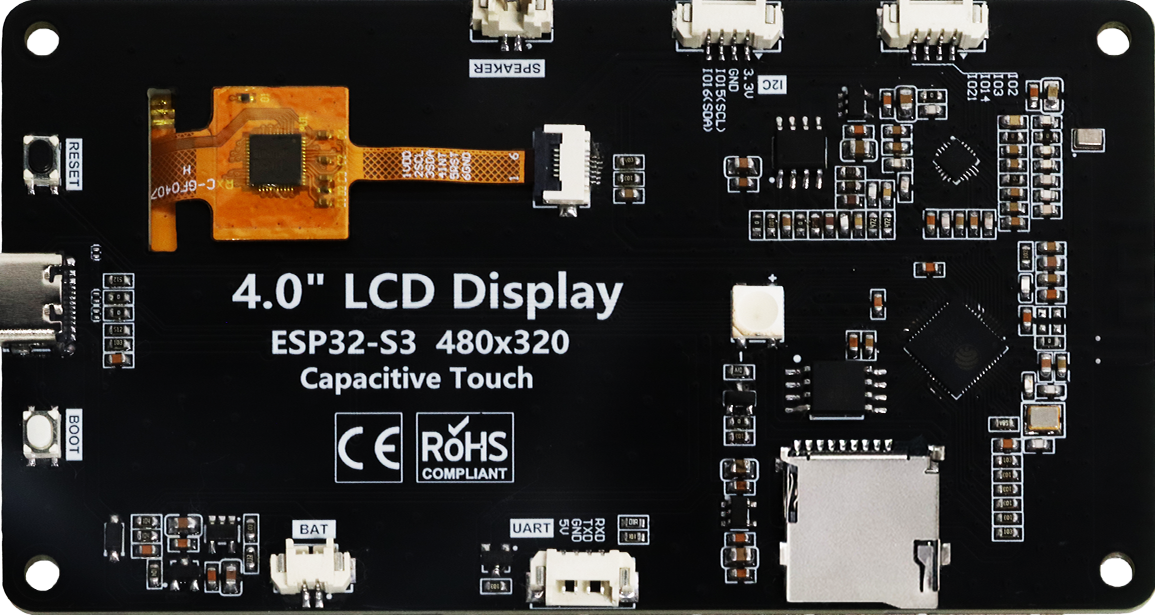

ESP32-S3 Display FNK0104S pinout
Pinout

Specifications

Radiosinherited from ESP32-S3

Wi-Fi
Wi-Fi 4 · 2.4 GHz
Bluetooth LE
BLE 5
Bluetooth Classic
no
802.15.4
no

USB

Native USB
yes

Display & extras

Display
4.0in 320x480 touch
Built onESP32-S3 Display FNK0104S BoardESP32-S3 SoC

The 4.0 inch 320x480 touch variant of Freenove's ESP32-S3 display board line. Freenove's own sources disagree on the display controller, so that value remains unverified.

Firmware for this board

Unverified

  • draftlingUnverifiedmultirelease .bin
    Flash draftlingrelease .binread the caveat

    Unverified esp-atlas asserts this board↔firmware link at the shown trust tier — it does not guarantee your specific unit or the current firmware version. Flashing can erase keys/config and can brick the device. At your own risk.

    Caveat: draftling names this board as freenove_fnk0104s in its release (asset draftling-freenove_fnk0104s.bin) (release v1.0.1); derived from the repo's own build files, not verified on hardware.

Notes

  • Display controller UNVERIFIED: the vendor repo README labels FNK0104S ST7789, while Freenove's model guide and touch-drawing sketch label FNK0104S ST7796. The vendor sources conflict, so neither controller is asserted.
  • The store listing (SKU FNK0104S) titles the line "Freenove ESP32 Touch Display ESP32-S3 CYD Wi-Fi Bluetooth, 2.8 3.5 4.0 Inch IPS Touch Screen, Dual-core 32-bit 240 MHz"
  • Flash, PSRAM, module, USB connector and battery are not verified here (omitted)
  • aka "freenove_fnk0104s" is the device token draftling uses for its release binaries
