SparkFun Thing Plus - ESP32-S2 WROOM

Board
by SparkFunsparkfun-thing-plus-esp32-s2-wroom≈ medium (~$15–50)

Also known as: ESP32S2_THING_PLUS, sparkfun_esp32s2_thing_plus

Verify my boardCompareEdit on GitHub

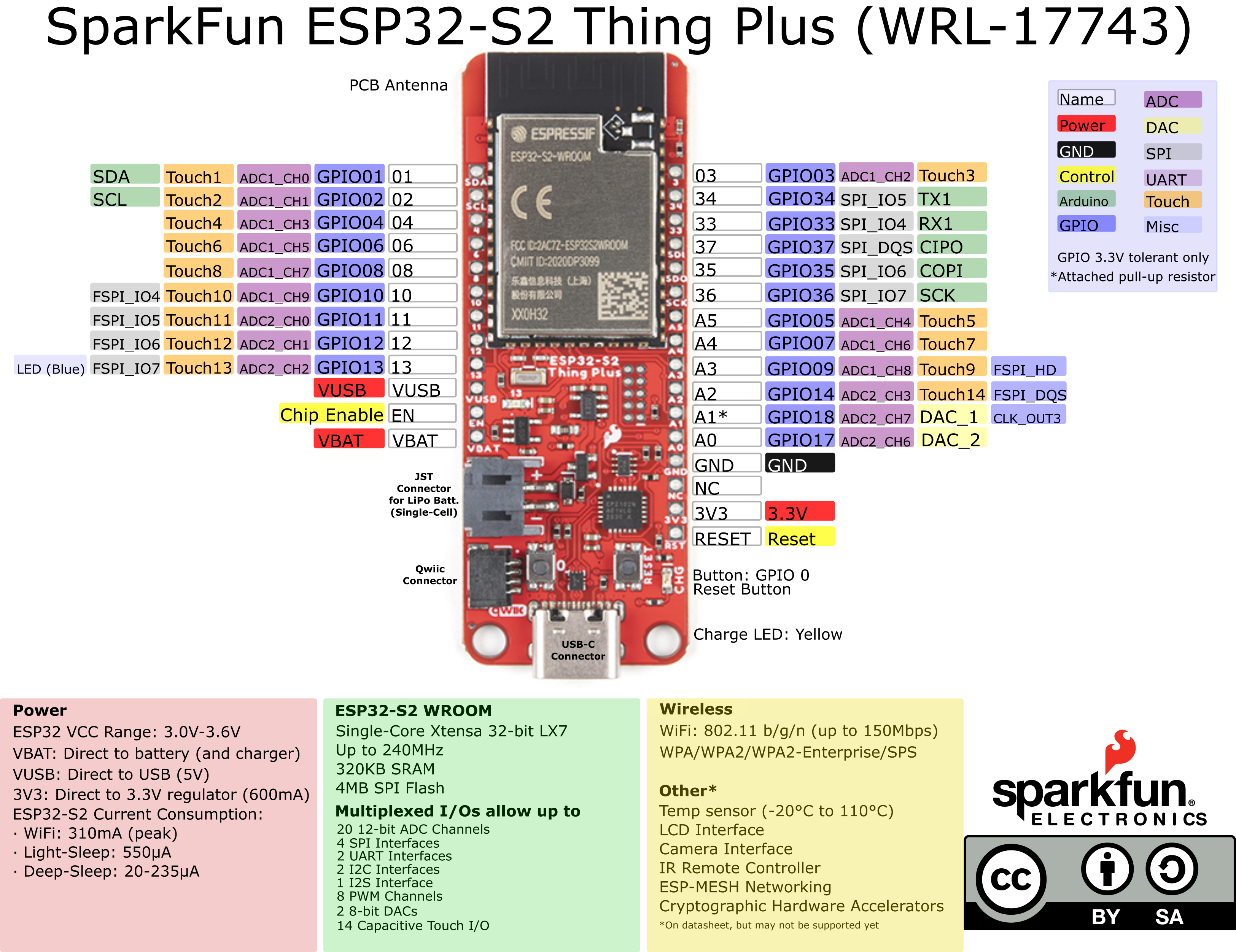

SparkFun Thing Plus - ESP32-S2 WROOM pinout
Pinout

Specifications

Radiosinherited from ESP32-S2

Wi-Fi
Wi-Fi 4 · 2.4 GHz
Bluetooth LE
none
802.15.4
no

USB

Native USB
yes
Connector
usb-c

Board

Form factor
thing-plus
Dimensions
64.77 × 22.86 mm
Battery connector
yes
Charging
yes

Display & extras

Extras
qwiic
Built onSparkFun Thing Plus - ESP32-S2 WROOM BoardESP32-S2 SoC

Feather-footprint-compatible ESP32-S2 board with USB-C, Qwiic connector, and onboard LiPo charging. The single-core ESP32-S2 module trades Bluetooth and 5GHz WiFi for extra security features (AES-XTS flash/RAM encryption, RSA-PSS secure boot) and native USB.

Firmware for this board

No firmware recipes yet — help add one.

Notes

  • ESP32-S2 WROOM module; 4 MB flash
  • Battery charging via onboard MCP73831 charger, JST connector for single-cell LiPo
  • ESP32-S2 omits Bluetooth and 5GHz WiFi; WiFi 802.11b/g/n only
  • Thing Plus form factor is pin-compatible with the Adafruit Feather footprint
  • ESP32-S2-WROOM (as opposed to -WROVER) has no PSRAM, per Espressif's ESP32-S2-WROOM datasheet
  • io.gpio_exposed=21 QUOTED: vendor hookup guide hardware overview states "There are 21 I/O pins broken out on this board, with 8 I/O pads on the back of the board" -- the 21 front-header count is used; the 8 back pads are not header pins and are not added in
  • io.gpio_free=21 DERIVED: the vendor's own graphical datasheet enumerates the 21 front-header GPIOs by number (1,2,4,6,8,10,11,12,13 on the left header; 3,34,33,37,35,36,5,7,9,14,18,17 on the right), matching the "21" front-header count exactly. Of esp32-s2's soc.reserved_pins, strapping 0/45/46 are not on this header; input_only 46 is not on this header; usb_flash_tied 19/20 are not on this header (both consumed internally by the native USB-C port) -- none of the reserved pins are exposed, so no subtraction applies: 21 - 0 = 21
